Understanding Shore Power Supply and Its Growing Importance
Shore Power Supply, also known as Cold Ironing or Alternative Maritime Power (AMP), represents a critical technological advancement in the maritime industry. It refers to the process of providing electrical power from the shore to a ship while it is berthed at a port, allowing the vessel to shut down its auxiliary engines. This practice significantly reduces emissions of greenhouse gases, particulate matter, nitrogen oxides, and sulfur oxides that would otherwise be generated by the ship's internal combustion engines. The growing global emphasis on environmental sustainability and stringent international regulations from bodies like the International Maritime Organization (IMO) are driving the rapid adoption of shore power technology. For port authorities, shipping companies, and governments, investing in and understanding Shore Power Supply is no longer a niche consideration but a central component of future-proofing maritime operations. This guide delves deep into the intricacies of shore power, exploring its benefits, technical specifications, economic considerations, and future potential, providing a comprehensive resource for anyone involved in this field.
Key Benefits of Implementing Shore Power Systems
The adoption of shore power systems offers a multitude of advantages that extend beyond mere regulatory compliance. These benefits encompass environmental, economic, and operational aspects, creating a compelling case for its widespread implementation.
Environmental Impact and Emission Reduction
The most significant and immediate benefit of shore power is its profound positive impact on the environment. Ships at berth traditionally burn diesel fuel in their auxiliary engines to power onboard systems like lighting, cooling, heating, and cargo handling equipment. This process is a major source of air pollution in port cities and contributes substantially to a port's carbon footprint. By connecting to a Shore Power Supply, these emissions are virtually eliminated at the point of use. The reduction in noise pollution is another considerable environmental benefit, creating a more pleasant and healthier environment for port workers and nearby residents. Studies have shown that a single large container ship using shore power for a typical port stay can reduce its emissions equivalent to taking hundreds of cars off the road for the same duration. This direct contribution to improving local air quality and public health is a powerful driver for ports located near urban centers.
Economic Advantages and Cost Savings
While the initial investment in shore power infrastructure is substantial, the long-term economic benefits can be significant for both ship owners and port operators. For vessel operators, the cost of electricity from the shore can be lower than the cost of burning marine fuel to generate the same amount of power, especially when fuel prices are high. Furthermore, using shore power reduces engine run hours, leading to decreased maintenance costs, fewer oil changes, and extended engine lifecycle. For ports, offering shore power can make them more attractive to environmentally conscious shipping lines and can be a key differentiator in a competitive market. It can also help avoid potential future fines or fees associated with exceeding emission limits in regulated regions. The economic calculus is continually improving as technology advances and the cost of renewable energy sources integrated into the grid decreases.
Regulatory Compliance and Future-Proofing
The regulatory landscape for the maritime industry is becoming increasingly stringent. Emission Control Areas (ECAs) have been established in many regions around the world, enforcing strict limits on sulfur and nitrogen oxide emissions. Ports in California, Europe, and China have already made shore power connection mandatory for certain vessel types. Complying with these regulations is not just about avoiding penalties; it's about ensuring uninterrupted access to major global ports. Implementing Shore Power Supply infrastructure is a proactive step towards future-proofing maritime operations. As global policies continue to evolve towards a net-zero future, ports and shipping companies that have already adopted green technologies like shore power will be ahead of the curve, facing fewer disruptive transitions and potentially benefiting from incentives or preferential treatment.
How to Choose the Right Shore Power Connection for Your Vessel
Selecting the appropriate shore power connection is a complex decision that depends on a variety of factors specific to the vessel and the ports it frequents. There is no one-size-fits-all solution, and understanding the key variables is essential for a successful and efficient implementation. The process involves assessing technical compatibility, power requirements, and safety systems.
Assessing Voltage, Frequency, and Power Requirements
The first and most critical step is to understand the vessel's electrical load requirements while at berth. This involves calculating the total power needed to run all essential services, including hotel loads (air conditioning, galley, lighting), communication systems, and cargo operations. Vessels must then match their requirements with the available shore power infrastructure at the ports they visit. A major challenge in the industry is the lack of a single global standard for voltage and frequency. While many ports offer high-voltage connections (6.6kV or 11kV), others may provide low-voltage power (440V). Furthermore, the frequency can be 50Hz or 60Hz depending on the region. This variability means that vessels trading globally often must be equipped with sophisticated transformers and frequency converters to ensure compatibility, making cost-effective shore power solutions for small ports a key area of development to encourage wider adoption.
Understanding Connection Types and Hardware
The physical connection between the ship and the shore is made through a specialized cable and connector system. The most common international standard for these connections is defined by the IEC/IEEE 80005-1 standard. This standard promotes interoperability between ships and ports. Key hardware components include:

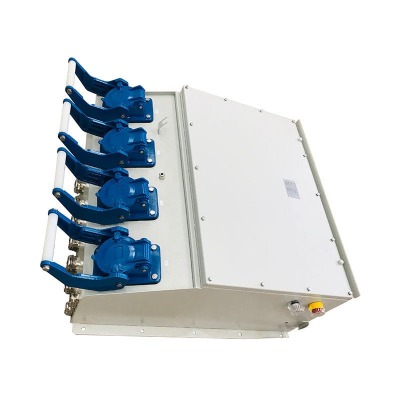

- Shore Connection Box: Located on the dock, this cabinet houses the circuit breakers, sockets, and monitoring equipment.
- Ship Connection Box (SCB): Located on the ship, this is the entry point for the shore power cable.
- High-voltage Cable Reels: Used to manage the heavy and bulky cables that carry the high-voltage current from the shore to the ship.
- Interlocking Systems: Safety systems that prevent the cable from being connected or disconnected while energized, protecting personnel from electrical hazards.
Choosing the right hardware involves considering the required power capacity, the environmental conditions (e.g., exposure to saltwater), and the ease of use for the crew.
Safety Protocols and Automatic Monitoring Systems
Safety is paramount when dealing with high-voltage electrical connections in a marine environment. A robust safety protocol must be established and rigorously followed. This includes:
- Proper personal protective equipment (PPE) for crew and port personnel.
- Clear communication procedures between the ship's engine room and the shore power operator.
- Synchronization equipment to ensure the ship's electrical system is perfectly matched with the shore-side power in terms of voltage, frequency, and phase angle before closing the circuit breaker.
Modern Shore Power Supply systems are equipped with automatic monitoring systems that continuously check for ground faults, overloads, and phase imbalances. These systems can automatically disconnect the power in case of a fault, preventing damage to equipment and ensuring the safety of personnel. The integration of these advanced safety features is a non-negotiable aspect of choosing a shore power system.
Technical Specifications and Installation Considerations
The successful deployment of a shore power system hinges on a deep understanding of its technical specifications and a meticulous approach to installation, whether on the vessel or at the port. This process requires careful planning and coordination between naval architects, electrical engineers, and port authorities.
Onboard Vessel Retrofitting Process
For existing vessels, installing a shore power connection is a retrofitting process that can be complex and requires dry-docking. The main steps involved include:
- Feasibility Study: An initial assessment to determine the space, structural, and electrical constraints on the vessel.
- System Design: Engineers design the system layout, specifying the location of the ship's connection box, cable routing, and the integration point with the ship's main switchboard.
- Installation of Components: This involves installing transformers (if needed), frequency converters, high-voltage switchboards, cable reels, and the safety interlock systems.
- Integration and Testing: The new system must be fully integrated with the ship's existing electrical distribution system. Comprehensive testing is then conducted to ensure safe and seamless operation.
The goal of onshore power supply installation guidelines is to ensure that this retrofitting is done in a standardized and safe manner, minimizing downtime and ensuring crew safety. The complexity and cost are highly dependent on the vessel's age, design, and existing electrical infrastructure.
Shore-Side Infrastructure Development
Developing the port-side infrastructure is a massive undertaking that involves significant civil and electrical engineering work. Ports must:
- Upgrade their electrical substations to handle the massive additional load from ships, which can be equivalent to powering a small town.
- Install a network of underground cables to deliver power to various berths.
- Install shore connection cabinets at each berth, equipped with the appropriate sockets and monitoring equipment.
- Implement a metering and billing system to charge the ships for the electricity consumed.
Ports must also consider the source of their electricity. To maximize the environmental benefits, many ports are investing in renewable energy sources, such as solar or wind farms, or purchasing green energy from the grid to power their shore-side systems, aligning with the concept of green port initiatives with shore power.
Comparing Shore Power to Other Emission Reduction Technologies
While shore power is a highly effective solution for reducing at-berth emissions, it is one of several technologies available to the maritime industry. Understanding how it compares to alternatives like scrubbers and alternative fuels is crucial for making informed strategic decisions.
The following table provides a high-level comparison of Shore Power with other prevalent emission reduction technologies:
| Technology | How it Works | Primary Emission Reduction | Operational Scope | Key Considerations |
|---|---|---|---|---|
| Shore Power (Cold Ironing) | Connects vessels to land-based electrical grid while berthed. | Eliminates all air emissions (SOx, NOx, PM, CO2) at berth. | At-berth only. | Requires significant upfront investment from ports and vessels. Dependent on grid power source. |
| Exhaust Gas Cleaning Systems (Scrubbers) | Uses water to "scrub" sulfur oxides from the ship's exhaust gas. | Primarily reduces SOx; some systems can reduce PM. | Vessel-wide, during entire operation. | Does not reduce CO2. Creates waste streams (scrubber sludge) that require disposal. |
| Liquefied Natural Gas (LNG) | Uses natural gas as fuel instead of traditional marine fuels. | Virtually eliminates SOx and PM; reduces NOx and CO2. | Vessel-wide, during entire operation. | Requires newbuild vessels or major retrofits. Risk of methane slip (a potent GHG). |
| Alternative Fuels (e.g., Green Methanol, Ammonia) | Replaces fossil fuels with fuels produced from renewable energy. | Can reduce well-to-wake CO2 emissions to near zero. | Vessel-wide, during entire operation. | Technology is still developing. Fuel availability, infrastructure, and cost are major hurdles. |
As the table illustrates, shore power is unique in its targeted approach to eliminating emissions at the source during port stays. It is not a direct competitor to fuels or scrubbers but rather a complementary technology. A holistic strategy for a shipping company might involve using LNG-fueled vessels equipped with shore power connectivity, thereby maximizing emission reductions both at sea and in port. The choice ultimately depends on a vessel's trading pattern, the regulatory environment, and the available capital for investment. The development of shore power safety standards and regulations ensures that this technology is implemented safely and effectively alongside these other options.
The Future of Shore Power: Trends and Global Adoption
The future of Shore Power Supply is bright, driven by relentless regulatory pressure, technological innovation, and a global consensus on the need for sustainable practices. The trajectory points towards wider adoption, standardization, and integration with smarter, greener grids.
Emerging Technologies and Standardization Efforts
Key trends shaping the future include the development of automated connection systems using robotics to reduce manual labor and connection time. There is also a strong push towards greater global standardization of voltages, frequencies, and connection hardware to reduce complexity and cost for global shipping lines. Furthermore, research is ongoing into wireless or inductive shore power connections, although this technology is still in its infancy for large-scale maritime applications. These innovations are crucial for creating cost-effective shore power solutions for small ports, enabling them to participate in the green port ecosystem without prohibitive expenses.
Global Regulatory Push and Incentive Programs
Regulations will continue to be the primary catalyst for adoption. The IMO and regional bodies like the European Union are actively discussing and implementing policies that make shore power mandatory for an increasing number of vessel types and ports. Beyond mandates, governments and port authorities are rolling out incentive programs, such as reduced port dues for vessels that use shore power, to encourage early adoption. These measures are part of broader green port initiatives with shore power at their core, aiming to transform ports into multimodal hubs of sustainability. As these regulations and incentives become more common, shore power will transition from a competitive advantage to a basic requirement for doing business in the global maritime trade.
