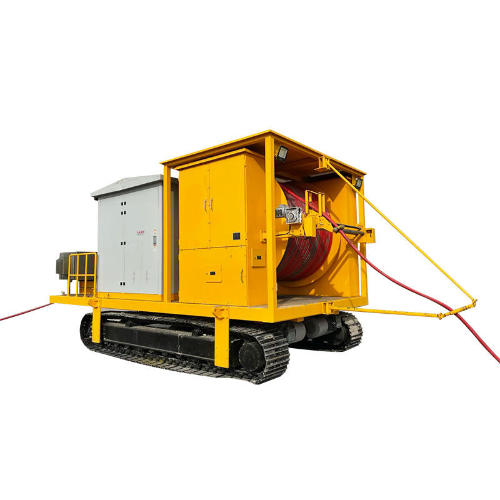

underground mining winch specifications
Why specifications matter far beyond the nameplate
A mining winch is more than a drum and a motor; it is a lifeline for underground logistics, shaft development, and ore movement where space is limited, air quality is managed, and reliability is non-negotiable. Reading underground mining winch specifications correctly allows engineers and supervisors to predict performance across full duty cycles rather than a single momentary pull. Real work rarely resembles a laboratory pull test. Loads are dynamic, slopes change, muck sticks in boxes, and haul roads introduce rolling resistance. The right specification set considers not only rated line pull at the first wrap, but also how line speed, thermal capacity, and braking behavior evolve as the rope layers build on the drum, as ambient temperature swings, and as ventilation shifts the cooling of motors and hydraulics.
Core performance parameters to scrutinize
Start with rated line pull and the duty cycle class. Ask whether the rating is continuous, intermittent, or short-time and how the thermal model was validated. Next, study line speeds at multiple drum layers because every additional wrap reduces effective diameter, changing both speed and pull. Inspect drum capacity in terms of working length plus a residual safety reserve; insufficient freeboard increases the risk of spooling overrun. Consider braking torque for both service and emergency brakes, including fail-safe spring-applied mechanisms with manual release procedures. Pay attention to ingress protection, corrosion resistance, and dust mitigation, because underground particulate will try to infiltrate seals and electrical enclosures. Finally, evaluate control philosophy—whether you need closed-loop tension control, creep speeds for precise positioning, or automated inching modes for shaft equipping.
Environment, ergonomics, and integration
Underground environments amplify small mistakes. Ventilation limits power density and penalizes waste heat; noise is amplified by rock walls; and access for maintenance is often narrow. A compact base frame with clearly labeled service points, guarded pinch zones, and lighting provision improves daily work quality. Integration with local interlocks—collision avoidance, gas detection, or conveyor logic—improves overall system safety. If the winch supports personnel platforms or emergency retrieval devices, standards for personnel-rated hoisting impose tighter brake redundancy, overspeed detection, and rope factors of safety than materials-handling only operations.
Specification priorities by application
When comparing headings, decline development, and shaft equipping, needs differ. Decline development prioritizes duty cycle, heat rejection, and reliable braking on grades. Shaft equipping demands ultra-precise creep speeds and multi-layer spooling quality to protect rope life. Headings benefit from compact footprints and robust dust sealing. In practice, a winch with lower peak pull but superior thermal capacity can outperform a higher-rated unit that derates quickly. Conversely, if you only need short bursts, peak pull and responsive braking may dominate selection. The following simple matrix summarizes emphasis areas.
Underground Task | Priority Spec Area | Why It Matters |
---|---|---|
Decline haul/assist | Continuous duty, brake torque, heat rejection | Long pulls on grade build heat and stress brakes during stops. |
Shaft equipping | Creep speed, closed-loop control, drum layering | Precise positioning prevents component strikes and rope damage. |
Heading support | Footprint, IP rating, dust control | Tight spaces and airborne fines challenge seals and access. |
electric vs hydraulic mining winch
Performance trade-offs in real conditions
Deciding between an electric and a hydraulic prime mover shapes efficiency, controllability, and maintenance culture for years. With an electric vs hydraulic mining winch comparison, engineers often note that electric drives excel in speed regulation and high efficiency at steady loads, while hydraulics shine in shock tolerance and compact power density. In damp or dusty headings, sealed hydraulic packages sometimes shrug off particulate better, yet they introduce hoses, fittings, and potential leakage pathways. Electric packages avoid fluid leaks and can integrate regenerative braking to recover energy, but they rely on clean power quality and stable ventilation for cooling. The best choice aligns with site utilities, workforce skill sets, and the winch’s duty profile.
Energy use, control behavior, and serviceability
Electric drives, whether direct AC with vector control or DC with chopper regulation, deliver fine torque at low speeds and smooth transitions between inching and full haul. Hydraulics create excellent stall tolerance and rapid torque step-up that can be forgiving when loads stick unexpectedly. However, hydraulic throttling wastes energy as heat unless paired with load-sensing pumps. Electric systems can reach higher overall efficiency and simplify energy accounting, which matters where power tariffs are tracked per heading. From a maintenance standpoint, electric packages centralize wear in bearings and contactors; hydraulics distribute wear across pumps, valves, and hoses. Both require disciplined contamination control: dry and clean for electric enclosures; particle- and water-free oil for hydraulic circuits.
Comparison summary table
While sentence-level analysis helps, a concise table also clarifies the differences. Note that these are general tendencies; specific designs may buck the trend based on control algorithms or component quality.
Aspect | Electric Mining Winch | Hydraulic Mining Winch |
---|---|---|
Low-speed control | Excellent with vector control; precise inching. | Good with proportional valves; very strong stall capability. |
Energy efficiency | High; potential for regenerative braking. | Moderate; throttling losses unless load-sensing/closed-loop. |
Shock tolerance | Good, depends on drive settings and gearbox inertia. | Very good; fluid cushioning absorbs shocks. |
Leak/spill risk | No hydraulic oil; lower spill risk. | Possible leaks; requires hose and seal vigilance. |
Cooling & ventilation | Needs airflow; heat sinks and fans. | Oil as heat sink; may still need coolers. |
Maintenance skills | Electrical/automation focus. | Hydraulics/fluid power focus. |
mining winch safety checklist
Pre-use inspections and controls that prevent incidents
Routine use breeds complacency, so a written mining winch safety checklist anchors consistent behavior across shifts. Before energizing, inspect the rope for broken wires, kinks, birdcaging, and diameter loss. Verify proper anchorage and freeboard on the drum. Confirm that guards, emergency stops, and interlocks are intact and labeled. Test limit switches at both extremes with no load. Validate brake application and release, including manual releases for emergencies. Ensure communication lines are clear: horn signals, lights, radios, or wired pendants must be agreed upon by all crew members. In areas with mixed traffic, set exclusion zones with visible cones or chains to keep workers outside the line of fire.
During-operation discipline and emergency readiness
When operating, keep speed changes gradual to avoid shock loading the rope. Never leave a suspended load unattended. If visibility is limited, assign a spotter with clear hand signals or a dedicated channel. Should an abnormal sound, smell, or vibration appear, stop, de-energize, and lockout for inspection rather than pushing to finish a lift. Emergency procedures must be drilled: who calls it, who secures the area, and who performs lockout/tagout. Practice lowering a load to a safe position upon power loss so that the team understands brake dynamics and any stored energy.
Checklist items mapped to purpose and frequency
Stating the rationale reinforces compliance. The table below links common items to their safety purpose and an indicative cadence; sites should tailor frequencies to duty severity and regulations.
Checklist Item | Why It Matters | Typical Frequency |
---|---|---|
Rope visual inspection | Detects damage before failure. | Every shift and after overload events. |
Brake function test | Ensures stopping power and fail-safe action. | Every shift; detailed test weekly. |
Limit switch verification | Prevents over-travel and spooling issues. | Every shift. |
Control and E-stop test | Confirms operator can halt motion instantly. | Every shift; documented monthly audit. |
Area exclusion setup | Keeps people out of the line of fire. | Every lift; supervisor spot check daily. |
- Standardize hand signals and radio phrases, post them at the control station.
- Use chocks and secondary restraints on slopes to reduce reliance on the winch alone.
- Record near misses as data, not blame; trend them to adjust training and engineering controls.
how to size a mining winch
From forces to nameplate: a step-by-step method
Correct sizing blends physics with practical margins. Begin by calculating required line pull: sum the static load (payload plus attachments) with rolling resistance or friction on the path and any grade component, then multiply by a safety factor that reflects uncertainty and duty class. For inclined pulls, line pull ≈ weight × sin(grade) + rolling resistance coefficient × weight. Add inertia for starting and stopping, especially with heavy drums or large payloads. Next, determine desired line speed at the average working layer, not only the first layer, and size motor/drive power as Power ≈ line pull × line speed / efficiency. Include efficiency penalties for gearboxes, drum bearings, and rope layering. Cross-check drum capacity: ensure working length plus at least 3 dead wraps remain on the drum at maximum pay-out. Finally, verify brake torque exceeds worst-case stopping requirements with margin.
Rope selection, drum geometry, and thermal limits
Wire rope diameter stems from the maximum line pull and desired factor of safety; larger diameters improve life but reduce drum capacity. Drum diameter should be at least 18–24 times the rope diameter to control bending fatigue; multi-layer drums need carefully cut grooves or smooth drums with evolved spooling patterns and fleet angles. Thermal limits are often overlooked: continuous pulls on grades heat motors, brakes, and gearboxes. A winch that meets peak pull briefly may derate under sustained duty, so model the duty cycle and add thermal mass or cooling where needed. Where precise positioning is critical, consider control requirements early, including encoder feedback and tension control so that the mechanical design and automation are aligned.
Worked example and comparative summary
Suppose you must pull 6,000 kg of equipment up a 10% grade over 200 m at 0.6 m/s. Converting to force, grade component is roughly 0.10 × weight; add rolling resistance, say 0.02 × weight for steel rollers. Effective required pull is near 0.12 × 6,000 kg × 9.81 ≈ 7,058 N, then apply a duty safety factor (for variability and shock) of 3 to 4, yielding around 21–28 kN continuous capability. At 0.6 m/s, mechanical power is about 12.6–16.8 kW; after efficiency losses, a motor in the 18–22 kW class could be appropriate. If the drum averages 10 wraps, line speed at upper layers will differ; verify speed control and brake sizing at both near-empty and near-full drum cases. This sentence-level comparison shows that upsizing by 10–15% to cover thermal and aging effects is often more reliable than chasing a perfect theoretical minimum.
Parameter | Baseline | With Safety Margin |
---|---|---|
Required line pull | ~21 kN | ~28 kN |
Line speed (avg layer) | 0.6 m/s | 0.6 m/s (controlled) |
Estimated motor power | ~16 kW (ideal) | ~22 kW (incl. losses) |
Rope diameter | Based on 21 kN | Next size up to extend life |
Brake torque | Meets nominal stop | Exceeds worst-case with reserve |
- Document all assumptions: grade, coefficients, ambient temperature, and duty cycle.
- Check fleet angle and sheave diameters to protect rope fatigue life.
- Validate spooling quality at both slow creep and full speed to avoid cross-winding.
mining winch maintenance schedule
Building a plan that prevents failures instead of reacting to them
An effective mining winch maintenance schedule blends calendar-based tasks with condition monitoring. Daily rounds inspect rope condition, drum cleanliness, guard integrity, and signs of oil leaks or hot spots. Operators wipe anchor points, confirm fasteners are torqued, and check that limit switches trip consistently. Weekly work includes brake air-gap checks (or spring force verification), gearbox oil level and vent inspection, and functional tests of emergency stops. Monthly tasks add rope lubrication and measurement of rope diameter at set stations to trend wear, along with electrical enclosure dust cleaning and verification of grounding continuity. Quarterly, change filters, sample oil for particles and moisture, and test control redundancy. Annually, plan a controlled stoppage to remove rope sections if creep has concentrated wear, inspect drum grooves, and calibrate tension sensors.
Condition monitoring and documentation
Condition-based maintenance turns data into uptime. Vibration trending on gearboxes and motors exposes bearing defects well before audible noise appears. Thermal imaging reveals braking drag or electrical resistance at terminals. Current and pressure logging (for electric and hydraulic systems respectively) helps detect drifting valves or sticky contactors. Every task in the mining winch maintenance schedule should be recorded against the asset with date, meter readings, and who performed the work. Trend charts encourage proactive rope retirement rather than surprise breaks. When failures do occur, root cause analysis should focus on physics, not individuals, so that design or procedural changes follow.
Typical schedule map
The table summarizes a balanced plan. Sites will adjust intervals to duty severity, ambient dust, and regulatory requirements, but the structure demonstrates how to blend quick checks with deeper inspections.
Task | Interval | Method | Record |
---|---|---|---|
Rope visual check and lubrication touch-up | Daily / per shift | Clean, inspect, light lube where needed | Checklist with rope gauge points |
Brake function and E-stop tests | Weekly | Dynamic stop from low speed; verify reset | Test log with stop distance |
Electrical enclosure cleaning | Monthly | De-energize, vacuum dust, inspect terminals | Photo before/after, torque notes |
Oil sampling (gearbox/hydraulics) | Quarterly | Draw hot sample; lab particle/moisture test | Trend report and alarms |
Full mechanical inspection | Annually | Rope length management, drum groove check, NDT on critical parts | Service report with corrective actions |
- Tie maintenance to usage hours where possible; heavy-duty shifts may accelerate intervals.
- Stock critical spares—rope terminations, brake linings, limit switches—to cut mean time to repair.
- Use photos and sketches in work orders; visual context avoids ambiguity across shifts.
Final practical takeaways
Whether your application is shaft equipping, decline haul assist, or heading support, the path to a dependable mining winch is consistent: interpret underground mining winch specifications beyond headline numbers; weigh electric vs hydraulic mining winch based on site utilities and control needs; institutionalize a living mining winch safety checklist; apply a disciplined method for how to size a mining winch; and execute a data-driven mining winch maintenance schedule. Treat the winch as a system woven into ground conditions, people, and processes, and it will repay you with uptime, predictable performance, and safer shifts.
